Part Number | SR144 |
Bearing type | Ball |
Structure | Single Row |
Load Direction | Radial |
Seal type | Open |

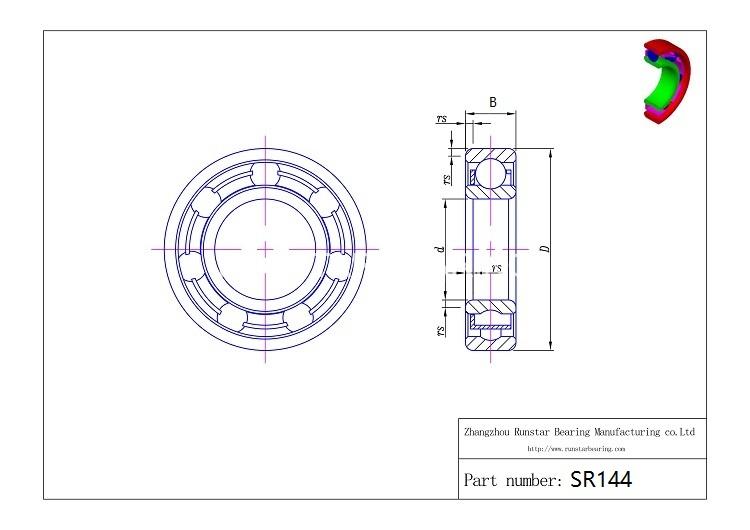

Bore diameter(d) | 1/8″︱3.175mm |
Outer diameter(D) | 1/4″︱6.35mm |
Width(B) | 3/32″︱2.381mm |
material | Stainless steel 440C(9Cr18) |
ring material | Stainless steel 440C(9Cr18) |
cage material | Stainless steel 304 |
ball material | Stainless steel 440C(9Cr18) |
Rubber material | Stainless steel 304 with rubber |
Grade | ABEC-1 |
Clearance | C0 |
BALL SIZE(mm) | 1mm |
BALL QTY | 7 |
lubrication | grease or oil |
Temperature Range | -30℃~130℃ |
weight(g) | 0.27 |
ISO9001:2015 | PASSED |
REACH | PASSED |
ROHS | PASSED |
Dynamic Load Rating (Cr) | 240 N |
Static Load Rating (Cor) | 75 N |
BEARING INTERCHANGE
RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
SR144 | SR1-418 | SR144 | SAX1/8 | S3175 | SR144 |
