ball bearing 695 S695

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number S695
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Open
Bore diameter(d) 5mm
Outer diameter(D) 13mm
Width(B) 4mm
material Stainless steel 440C(9Cr18)
ring material Stainless steel 440C(9Cr18)
cage material Stainless steel 304
ball material Stainless steel 440C(9Cr18)
Rubber material Stainless steel 304 with rubber
Grade ABEC-1
Clearance C0
BALL SIZE(mm) 2mm
BALL QTY 8
lubrication grease or oil
Temperature Range -30℃~130℃
weight(g) 2.31
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 916N
Static Load Rating (Cor) 346 N

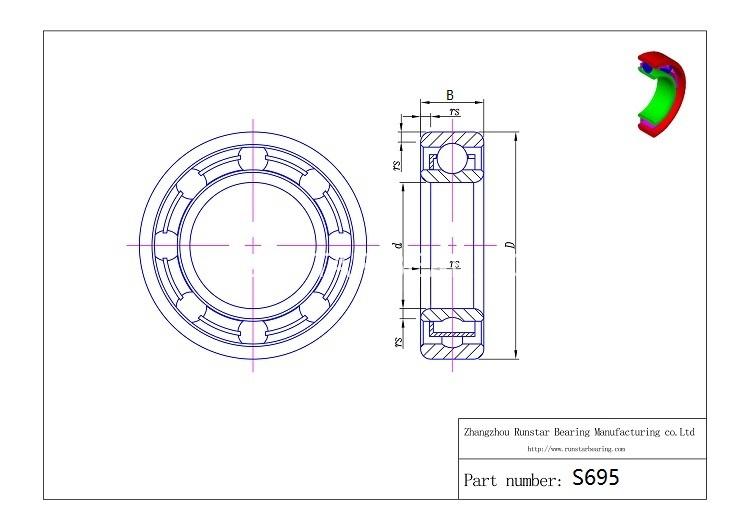

ball bearing 695 s695 d

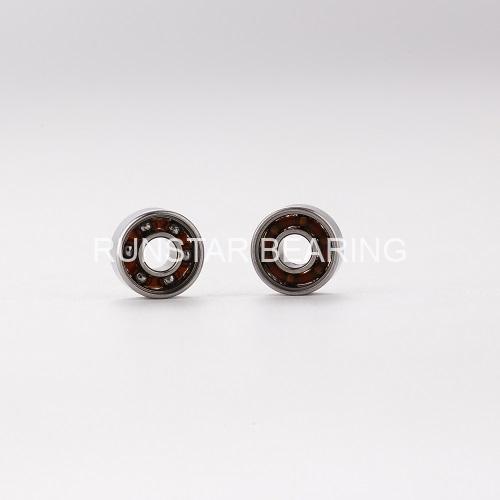

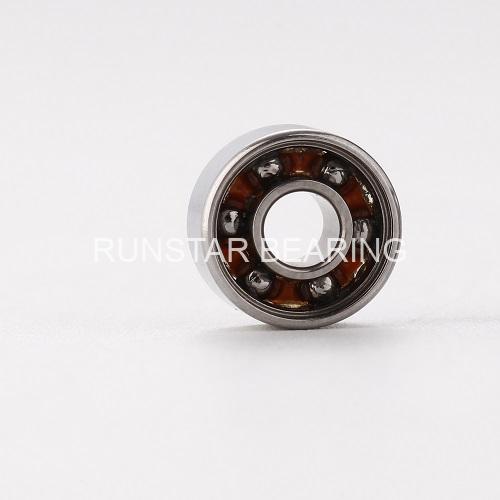

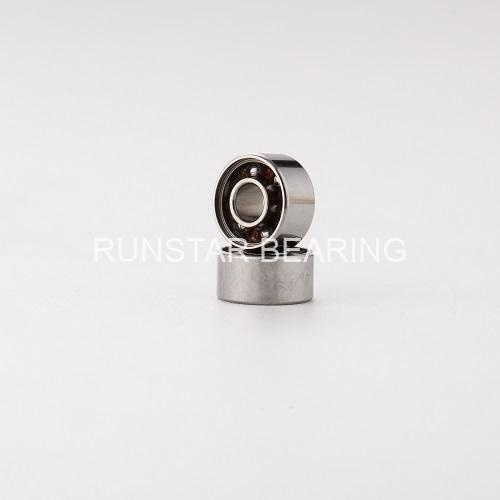

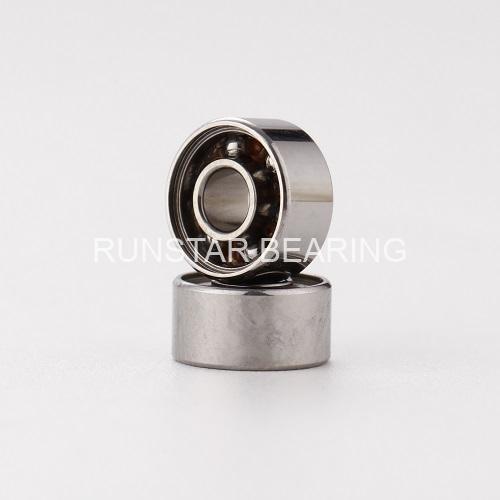

695 bearing is a open type of miniature ball bearings, standard 695 bearing(ball bearing 695) is with a bore size 5mm,a outer diameter 13mm and a width 4mm, it is a pop size in applications.It is most used the fields of radio control model,micro motors and miniature gearboxes etcs.

Runstar Bearings Manufacturing Co.;Ltd is a professional 695 bearing factory since 2007,we design and manufacture 695 bearing(ball bearing 695) from ABEC-1 to ABEC-7 for industries, the material of 695 bearing (bal bearing 695)can be chrome steel,stainless steel or hybrid ceramic for choices.695 bearings(ball bearing 695) with hybrid ceramic balls can improve the speed greatly and decrease the friction and weight greatly. All 695 bearing(ball bearing 695) from Runstar is with RoHs and REACH compliance,it is well-known for its high precision,low voice and long life.

BEARING INTERCHANGE



RUNSTAR NMB NTN ADR GRW EZO TIMKEN
S695 SR-1350 S695 SAY5 S695 S695
