Part Number | 695 |
Bearing type | BALL |
Structure | Single Row |
Load Direction | Radial |
Seal type | Open |
Bore diameter(d) | 5mm |
Outer diameter(D) | 13mm |
Width(B) | 4 mm |
material | Chrome steel 52100(Gcr15) |
ring material | Chrome steel 52100(Gcr15) |
cage material | 300 Series Stainless Steel |
ball material | Chrome steel 52100(Gcr15) |
shields material | 300 Series Stainless Steel |
Grade | ABEC-1(higher grade available) |
Clearance | C0(other clearance available) |
BALL SIZE(mm) | 2 mm |
BALL QTY | 8 |
lubrication | grease(oil available) |
Temperature Range | -30℃~130℃ |
weight(g) | 2.31 |
ISO9001:2015 | PASSED |
REACH | PASSED |
ROHS | PASSED |
Dynamic Load Rating (Cr) | 916 N |
Static Load Rating (Cor) | 346 N |

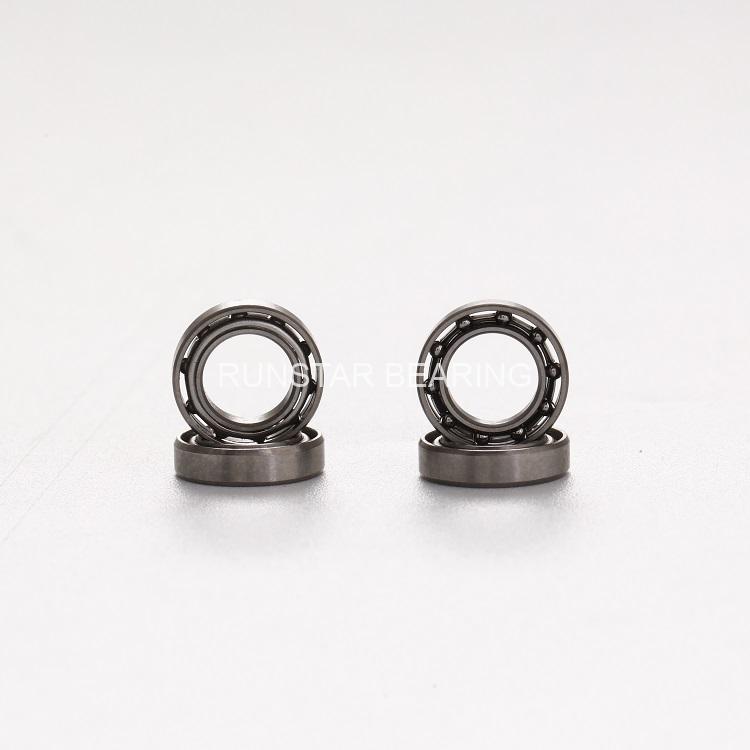

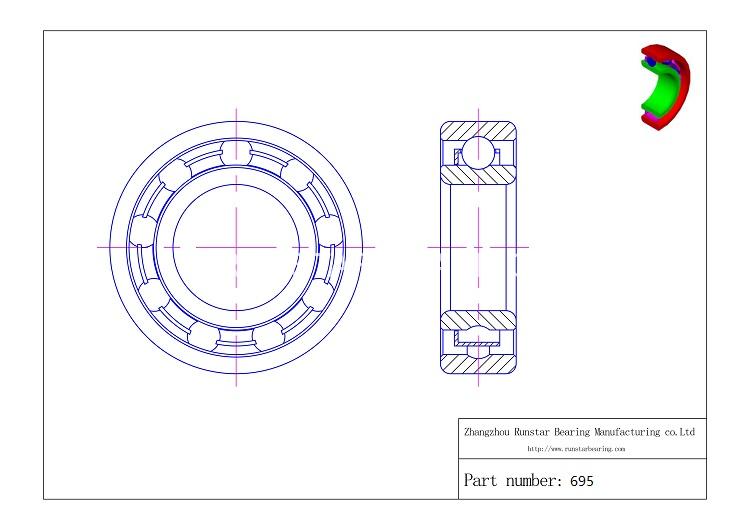

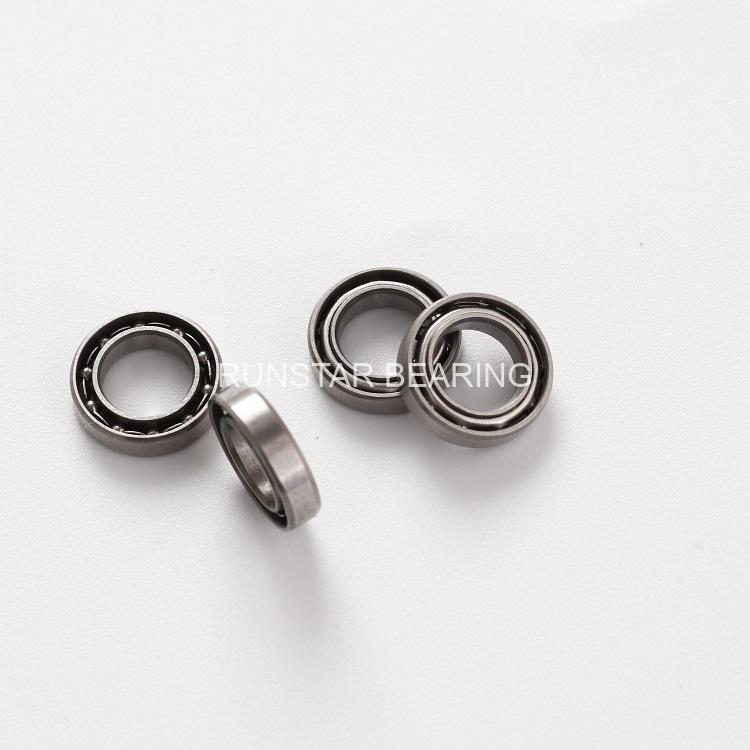

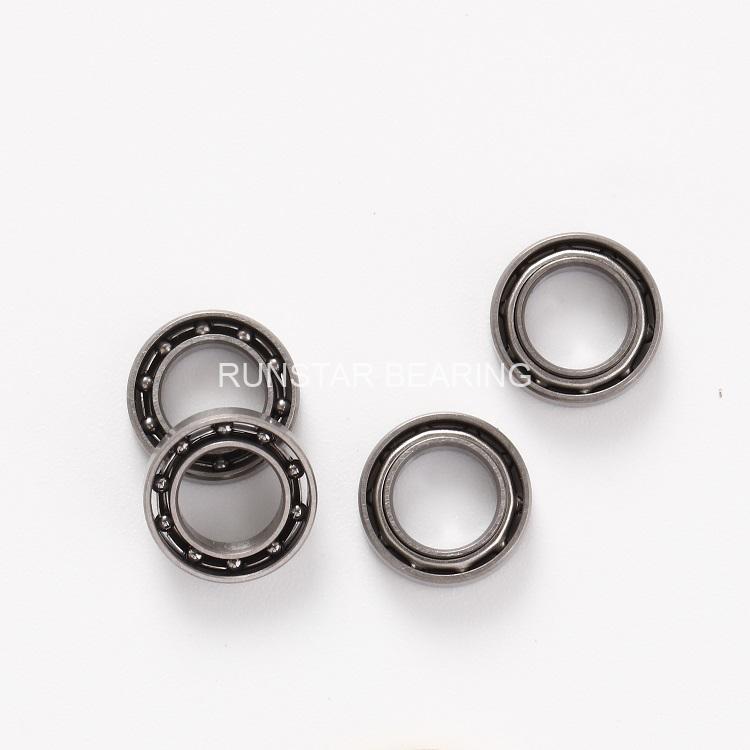

Ball bearing 695 is also called 695 bearing. 695 Bearing(ball bearing 695) is a pop miniature ball bearing in application, standard 695 bearing(ball bearing 695) is with a bore size 5mm,a outer diameter 13mm and a width 4mm.Non-standard 695 bearing(ball bearing 695) with special size is also accepted for special application in Runstar. Usually there are three types for 695 bearing(ball bearing 695), they are open type,with shields and with rubber seal. 695 bearing(ball bearing 695) is belong to open type, it is convenient for user to clean and add the grease in application. You can easily find 695 bearing(ball bearing 695) in life, usually the 695 bearing(ball bearing 695) are widely used in rc hobby,fishing reel and micro motor etcs.
Runstar Bearings Manufacturing Co.;Ltd is a professional 695 bearing factory since 2007,we design and manufacture 695 bearing(ball bearing 695) from ABEC-1 to ABEC-7 for industries, the material of 695 bearing (bal bearing 695)can be chrome steel,stainless steel or hybrid ceramic for choices.695 bearings(ball bearing 695) with hybrid ceramic balls can improve the speed greatly and decrease the friction and weight greatly. All 695 bearing(ball bearing 695) from Runstar is with RoHs and REACH compliance,it is well-known for its high precision,low voice and long life.
RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
695 | R-1350 | 695 | AY5 | 695 | 695 |
