| Part Number | 608ZZ |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | Shields |
| Bore diameter(d) | 8mm |
| Outer diameter(D) | 22mm |
| Width(B) | 7mm |
| material | Chrome steel 52100(Gcr15) |
| ring material | Chrome steel 52100(Gcr15) |
| cage material | 300 Series Stainless Steel |
| ball material | Chrome steel 52100(Gcr15) |
| shields material | 300 Series Stainless Steel |
| Grade | ABEC-1(higher grade available) |
| Clearance | C0(other clearance available) |
| BALL SIZE(mm) | 3.969mm |
| BALL QTY | 7 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 12.9 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 2799 N |
| Static Load Rating (Cor) | 1103 N |
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| 608zz | R-2280zz | 608zz | 608zz | 608-2z | 608zz |

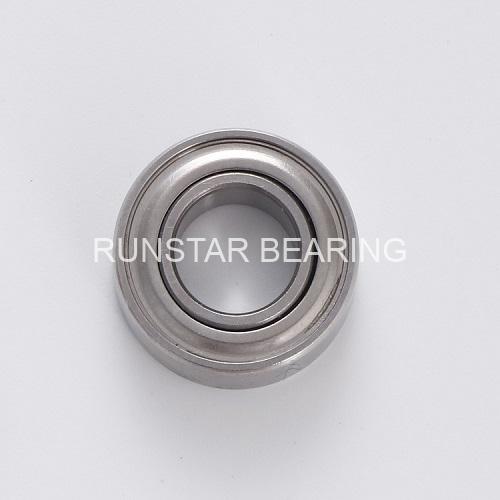

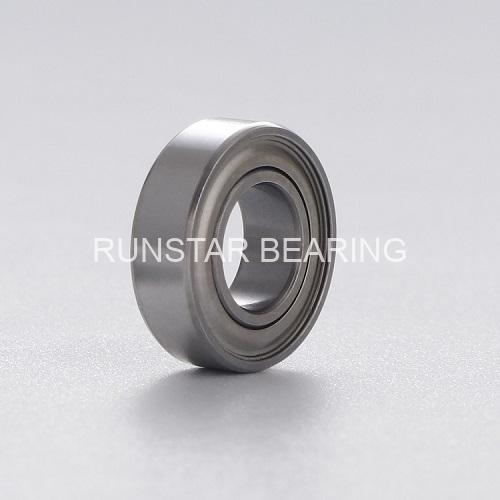

608z bearing is same as ball bearing 608ZZ, it is a very pop size in ball bearings, it is with a bore size 8mm,a outer diameter 22mm and a width 7mm. Standard 608z bearing is designed with 7 balls,and the size of balls is 3.969mm,so 608z bearing can support large Dynamic Load Rating to 2799N. There are three types for ball bearing, they are open type,with shields and with rubber seal. 608Z bearings is with shields, it is very pop in application. You can easily find 608Z bearings in life, usually the 608z bearing are widely used in motor,air conditioner,home appliance,power tool,skating board and fidget spinner etcs.
Runstar Bearings Manufacturing Co.;Ltd is a professional 608Z bearing factory since 2007,certified ISO9001:2015. we design and manufacture 608Z bearings from ABEC-1 to ABEC-7 for industries, the material of 608z bearings can be chrome steel,stainless steel or hybrid ceramic for choices. 608z bearings from Runstar is with RoHs and REACH compliance.
