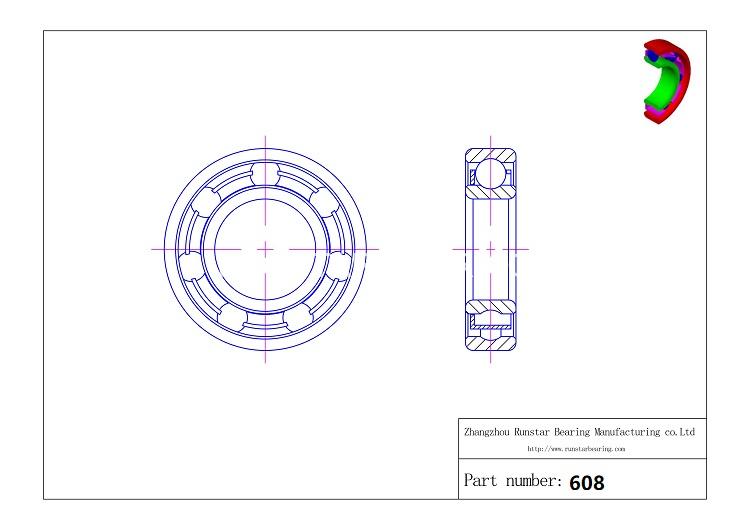

| Part Number | 608 |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | Open |
| Bore diameter(d) | 8mm |
| Outer diameter(D) | 22mm |
| Width(B) | 7mm |
| material | Chrome steel 52100(Gcr15) |
| ring material | Chrome steel 52100(Gcr15) |
| cage material | 300 Series Stainless Steel |
| ball material | Chrome steel 52100(Gcr15) |
| shields material | 300 Series Stainless Steel |
| Grade | ABEC-1(higher grade available) |
| Clearance | C0(other clearance available) |
| BALL SIZE(mm) | 3.969mm |
| BALL QTY | 7 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 11.80 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 2799 N |
| Static Load Rating (Cor) | 1103 N |
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| 608 | R-2280 | 608 | 608 | 608 | 608 |

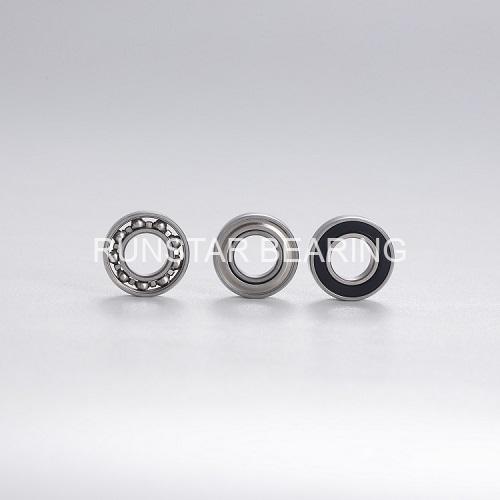

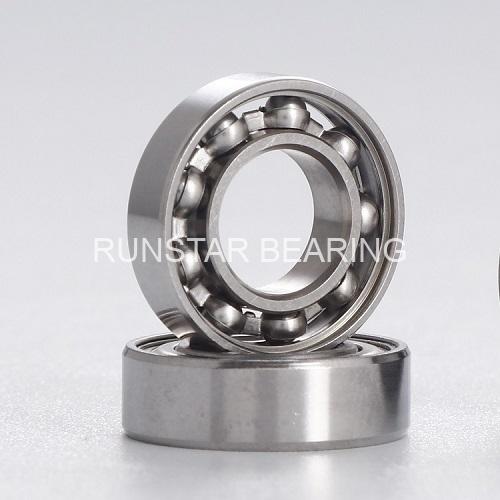

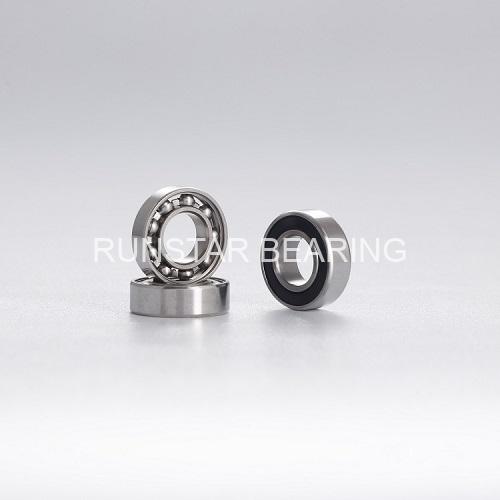

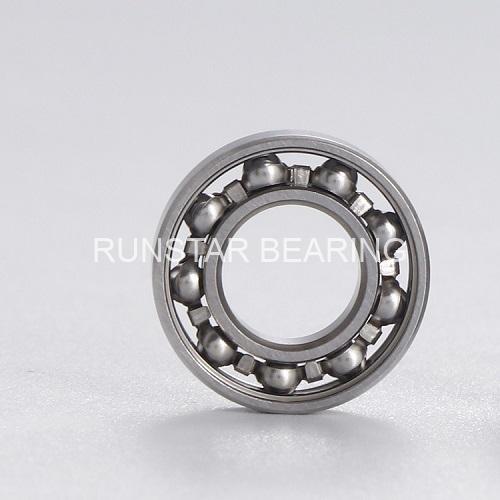

608 bearing is same as ball bearing 608, it is a very pop size in ball bearings, it is with a bore size 8mm,a outer diameter 22mm and a width 7mm. Usually there are three types for ball bearing, they are open type,with shields and with rubber seal. 608 bearings is belong to open type, it is convenient for user to clean and add the grease in application. You can easily find 608 bearings in life, usually the 608 bearing are widely used in motor,air conditioner,skating board and fidget spinner etcs.
Runstar Bearings Manufacturing Co.;Ltd is a professional 608 bearing factory since 2007,we design and manufacture 608 bearings from ABEC-1 to ABEC-7 for industries, the material of 608 bearings can be chrome steel,stainless steel or hybrid ceramic for choices. 608 bearings from Runstar is with RoHs and REACH compliance.
