| Part Number | F2.5-6M |
| Bearing type | BALL |
| Structure | THRUST BALL |
| Load Direction | AXIAL |
| Raceway type | groove raceway |

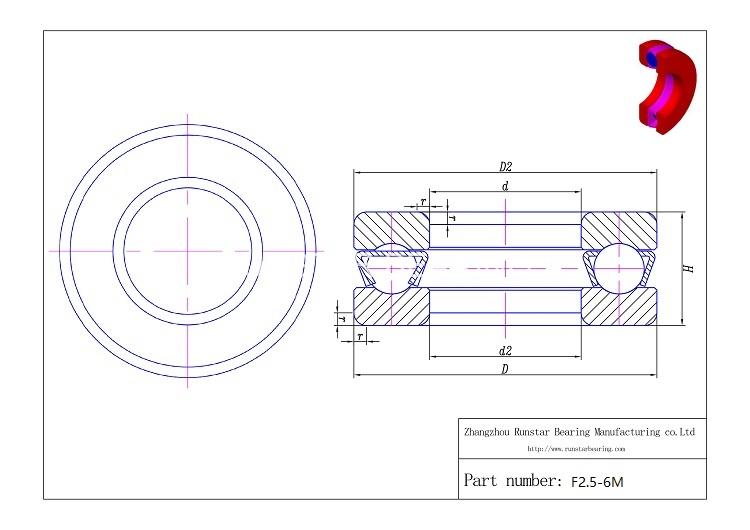

| bore diemater of shaft washer(d) | 2.5mm |
| Outer diameter of housing washer(D) | 6mm |
| bore diemater of housing washer(d1) | 2.7mm |
| Outer diameter of shaft washer(D1) | 6.8mm |
| thickness( H) | 3.5 mm |
| radius | 0.1mm |
| material of washers | Chrome steel 52100(Gcr15) |
| material of cage | bronze or stainless steel |
| ball material | Chrome steel 52100(Gcr15) |
| Grade | ABEC-1(higher grade available) |
| Clearance | C0(other clearance available) |
| BALL SIZE(mm) | 1.2 mm |
| BALL QTY | 6 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 0.60 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 117 N |
| Static Load Rating (Cor) | 83 N |
Axial ball bearings are also called axial bearings or thrust ball bearings. They are one of particular separable ball bearings, and they are composed of shaft washer,housing washer and steel balls with cage. And shaft washer is designed to fix the shaft, and housing washer is designed to fix the parts outside the shaft. Compared with deep groove ball bearings, Axial ball bearings can not support radial load or high speed, it can only support axial load and mediunm speed in application.
There are miniature axial ball bearings and small axial ball bearings.

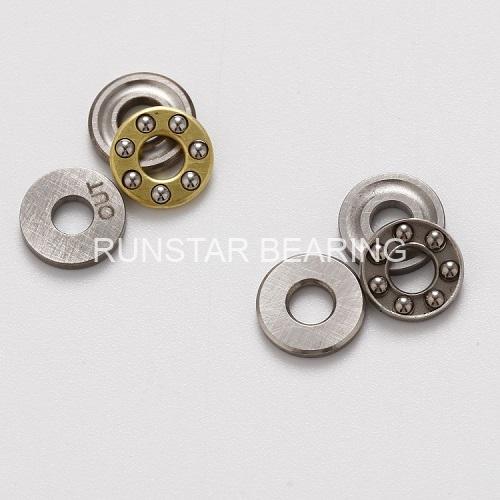

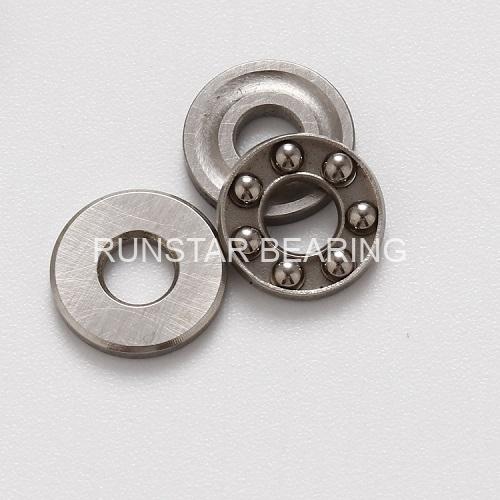

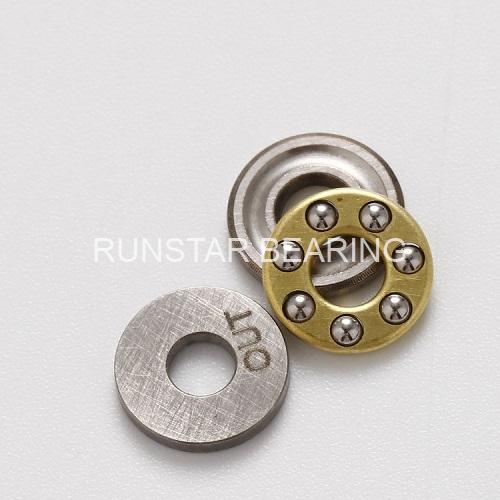

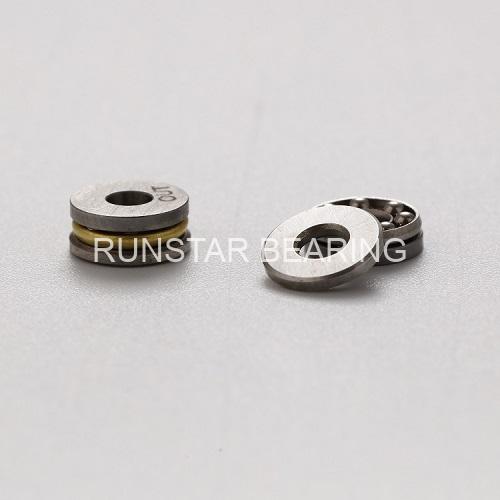

F2.5-6M is belong to miniature axial ball bearings,it is a customized axial ball bearings with a bore diameter 2.5mm ,a outer diameter 6mm and a width 3.5mm, it is designed for special application.
Usually axial ball bearings are widely used in crane hook, vertical water pump, vertical centrifuge, Jack, low-speed reducer which only need one side of axial load and low speed. Zhangzhou Runstar Bearings Manufacturing Co.;Ltd is a professional axial ball bearings factory since 2007,certified ISO9001:2015.Runstar has more than 15 years in designing and manufacturing axial ball bearings for industries, customized axial ball bearings are accepted in Runstar.
BEARING INTERCHANGE
| RUNSTAR | NMB | NTN | ADR | GRW | EZO | TIMKEN |
| F2.5-6M |
