abec-3 bearings S604

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number S604
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Open
Bore diameter(d) 4mm
Outer diameter(D) 12mm
Width(B) 4mm
material Stainless steel 440C(9Cr18)
ring material Stainless steel 440C(9Cr18)
cage material Stainless steel 304
ball material Stainless steel 440C(9Cr18)
Rubber material Stainless steel 304 with rubber
Grade ABEC-1
Clearance C0
BALL SIZE(mm) 2mm
BALL QTY 7
lubrication grease or oil
Temperature Range -30℃~130℃
weight(g) 2.19
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 814 N
Static Load Rating (Cor) 280  N

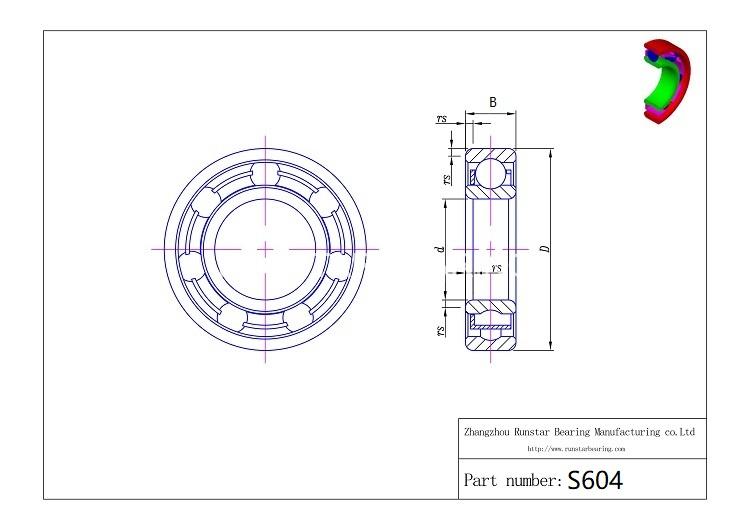

abec 3 bearings s604 d

BEARING INTERCHANGE



RUNSTAR NMB NTN ADR GRW EZO TIMKEN
S604 SR-1240 S604 S604 S604
