7mm ball bearings 687

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number 687
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type Open
Bore diameter(d) 7mm
Outer diameter(D) 14mm
Width(B) 3.5mm
material Chrome steel 52100(Gcr15)
ring material Chrome steel 52100(Gcr15)
cage material 300 Series Stainless Steel
ball material Chrome steel 52100(Gcr15)
shields material 300 Series Stainless Steel
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 2mm
BALL QTY 9
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 2.03
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 997 N
Static Load Rating (Cor) 410 N
7mm ball bearings 687 d

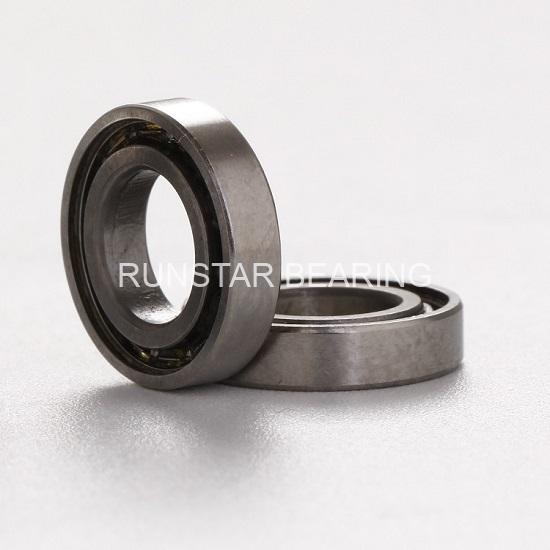

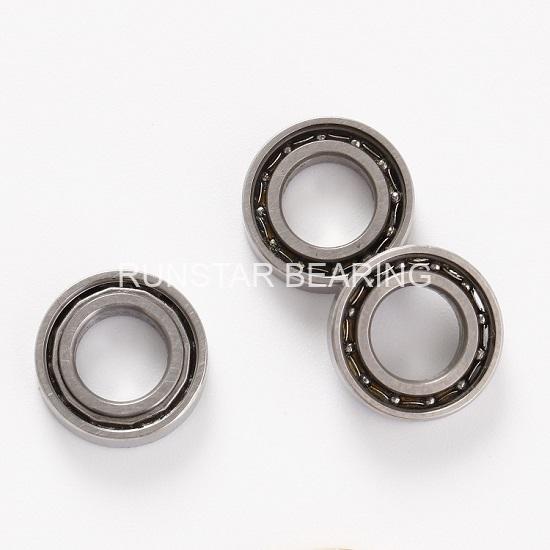

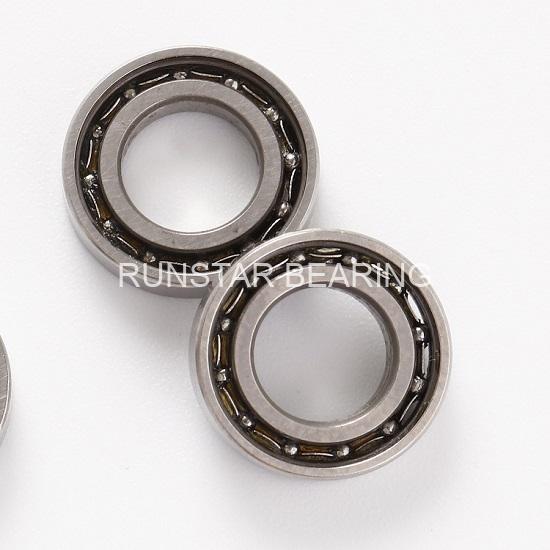

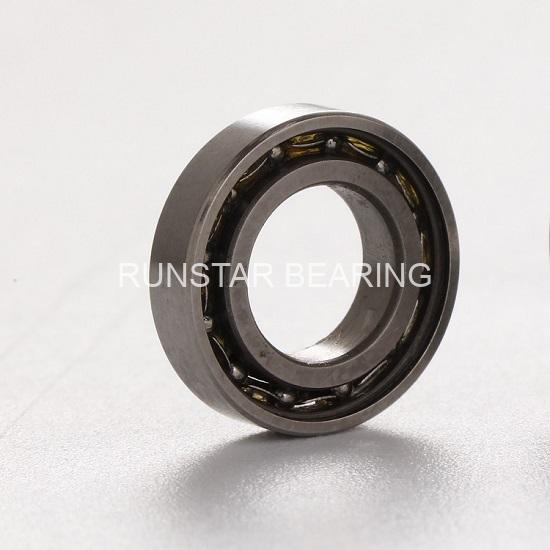

7mm ball bearing 687 is also called 687 bearing. 687 Bearing(7mm ball bearing 687) is a pop miniature ball bearing in application, standard 687 bearing(7mm ball bearing 687) is with a bore size 7mm,a outer diameter 14mm and a width 3.5mm.Non-standard 687 bearing(7mm ball bearing 687) with special size is also accepted for special application in Runstar. Usually there are three types for 687 bearing(7mm ball bearing 687), they are open type,with shields and with rubber seal. 687 bearing(7mm ball bearing 687) is belong to open type, it is convenient for user to clean and add the grease in application. You can easily find 687 bearing(7mm ball bearing 687) in life, usually the 687 bearing(7mm ball bearing 687) are widely used in rc hobby,fishing reel and micro motor etcs.

Runstar Bearings Manufacturing Co.;Ltd is a professional 687 bearing factory since 2007,we design and manufacture 687 bearing(7mm ball bearing 687) from ABEC-1 to ABEC-7 for industries, the material of 687 bearing (7mm ball bearing 687)can be chrome steel,stainless steel or hybrid ceramic for choices.687 bearings(7mm ball bearing 687) with hybrid ceramic balls can improve the speed greatly and decrease the friction and weight greatly. All 687 bearing(7mm ball bearing 687) from Runstar is with RoHs and REACH compliance,it is well-known for its high precision,low voice and long life.



BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
687 L-1470 687 AX7 687 687
