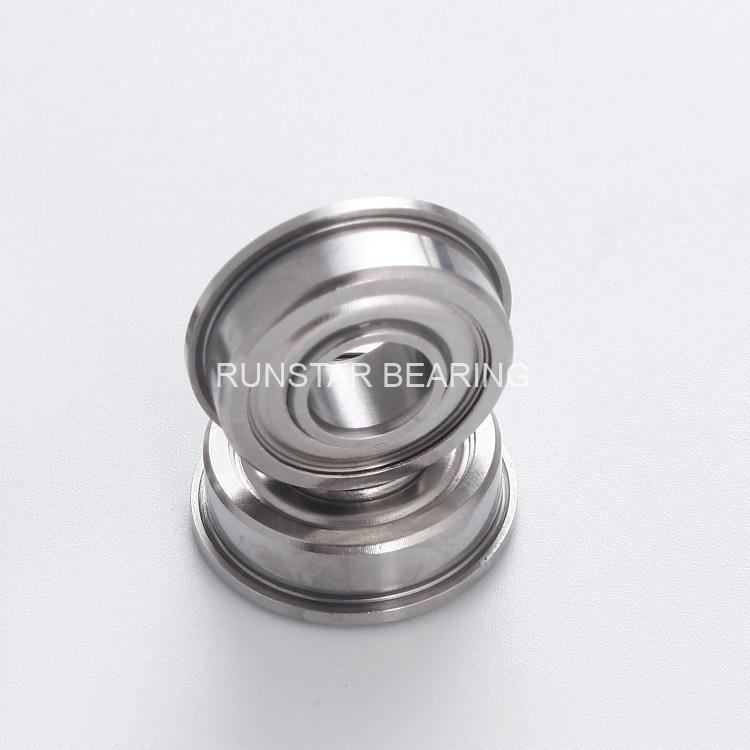

| Part Number |
SFR4ZZ EE |
| Bearing type |
BALL |
| Structure |
Single Row |
| Load Direction |
Radial |
| Seal type |
Shields |
| Bore diameter(d) |
1/4″︱6.35mm |
| Outer diameter(D) |
5/8″︱15.875 |
| Flange OD(Df) |
0.69″︱17.526mm |
| Width of outer diameter(C) |
0.1960″︱4.978mm |
| Width of inner diameter(B) |
0.2273″︱5.773mm |
| Flange thickness (Bf) |
0.042″︱1.0668mm |
| radius (rs) |
0.30mm |
| material |
Stainless steel 440 c(9cr18) |
| ring material |
Stainless steel 440 c(9cr18) |
| cage material |
300 Series Stainless Steel |
| ball material |
Stainless steel 440 c(9cr18) |
| shields material |
300 Series Stainless Steel |
| Grade |
ABEC-1(higher grade available) |
| Clearance |
C0(other clearance available) |
| BALL SIZE(mm) |
2.381mm (1.588MM*10 PCS) |
| BALL QTY |
8 |
| lubrication |
grease(oil available) |
| Temperature Range |
-30℃~130℃ |
| weight(g) |
4.9 |
| ISO9001:2015 |
PASSED |
| REACH |
PASSED |
| ROHS |
PASSED |
| Dynamic Load Rating (Cr) |
1259N |
| Static Load Rating (Cor) |
498N |
