3 flange bearing SF683

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number SF683
Bearing type BALL
Structure Single Row
Load Direction Radial
Seal type OPEN
Bore diameter(d) 3mm
Outer diameter(D) 7mm
Flange OD 8.1mm
Width(B) 2mm
Flange thickness 0.5mm
radius 0.1mm
material Stainless steel 440C(9Cr18)
ring material Stainless steel 440C(9Cr18)
cage material Stainless steel 304
ball material Stainless steel 440C(9Cr18)
shields material Stainless steel 304
Grade ABEC-1(higher grade available)
Clearance C0(other clearance available)
BALL SIZE(mm) 1mm
BALL QTY 8
lubrication grease(oil available)
Temperature Range -30℃~130℃
weight(g) 0.37
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 264N
Static Load Rating (Cor) 90  N

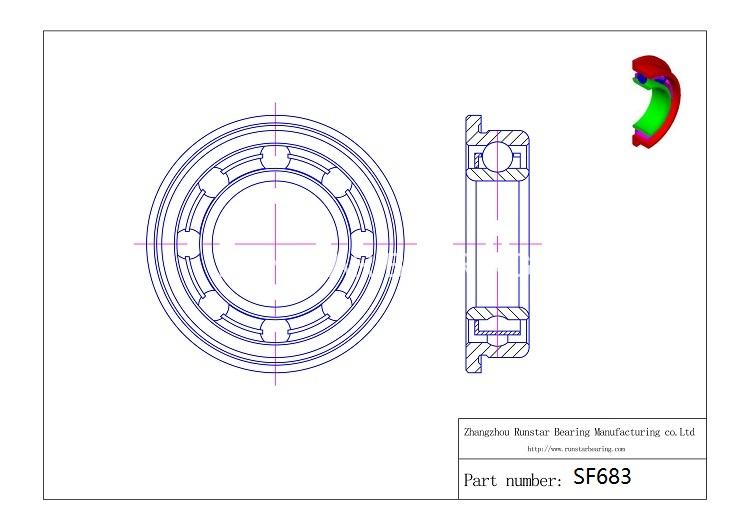

3 flange bearing sf683 d

BEARING INTERCHANGE

RUNSTAR NMB NTN ADR GRW EZO TIMKEN
SF683 SLF-730 SFL683 SFAX3 SF683 SF683
