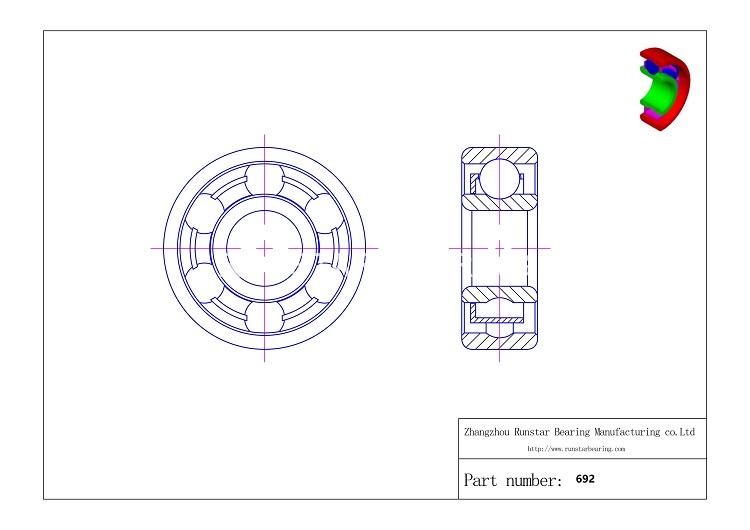

| Part Number | 692 |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | open |
| Bore diameter(d) | 2mm |
| Outer diameter(D) | 6mm |
| Width(B) | 2.3mm |
| material | Chrome steel 52100(Gcr15) |
| ring material | Chrome steel 52100(Gcr15) |
| cage material | 300 Series Stainless Steel |
| ball material | Chrome steel 52100(Gcr15) |
| shields material | 300 Series Stainless Steel |
| Grade | ABEC-1 |
| Clearance | C0 |
| BALL SIZE(mm) | 1.2mm |
| BALL QTY | 6 |
| lubrication | grease or oil |
| Temperature Range | -30℃~130℃ |
| weight(g) | 0.28 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 281 N |
| Static Load Rating (Cor) | 79 N |
Runstar Bearing Manufacturing Co.;Ltd is a professional manufacturer of miniature ball bearing and thrust ball bearing,we have passed ISO9001:2015,Reach and RoHs.
