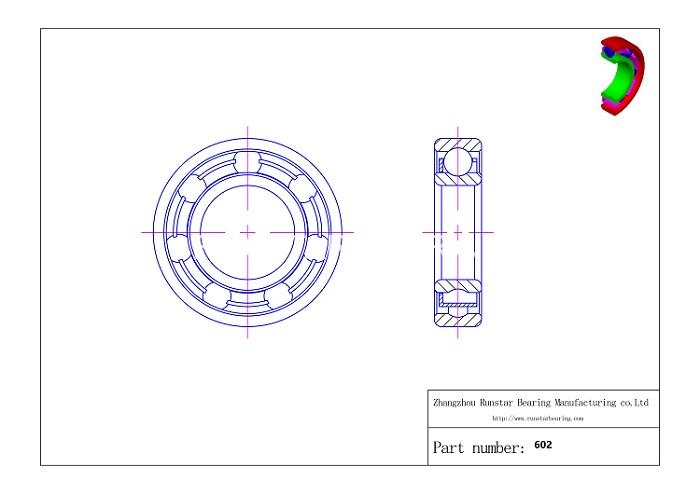

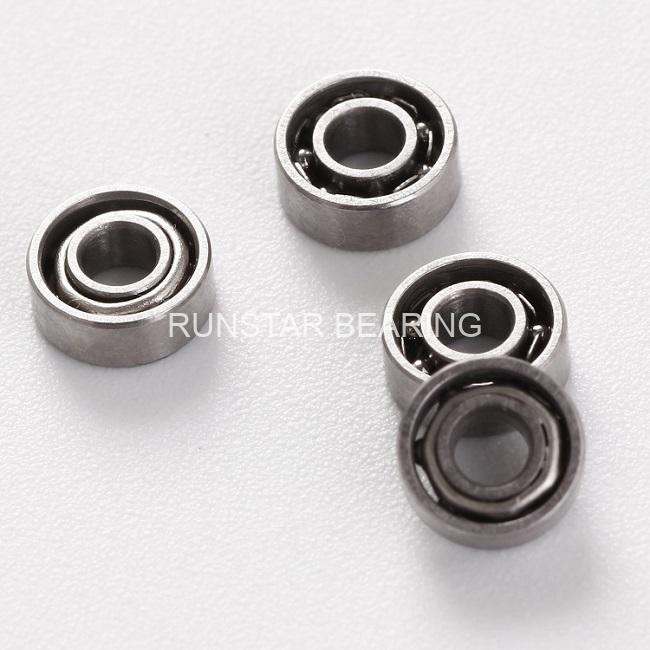

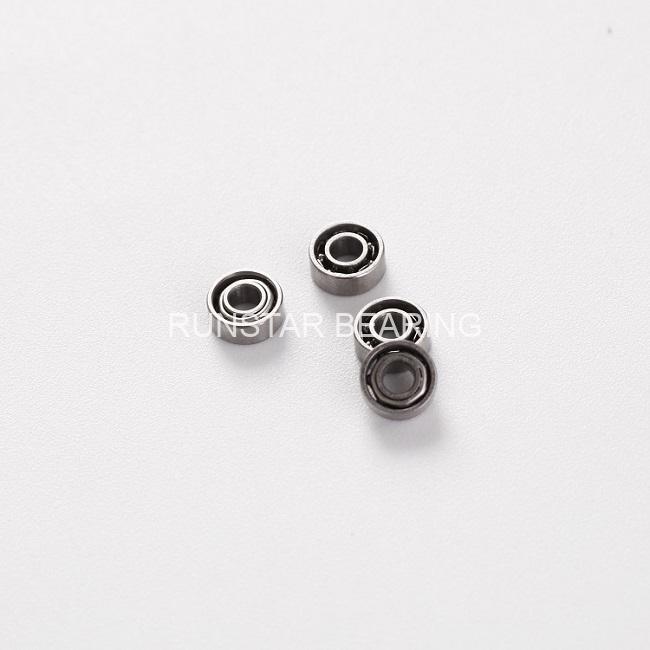

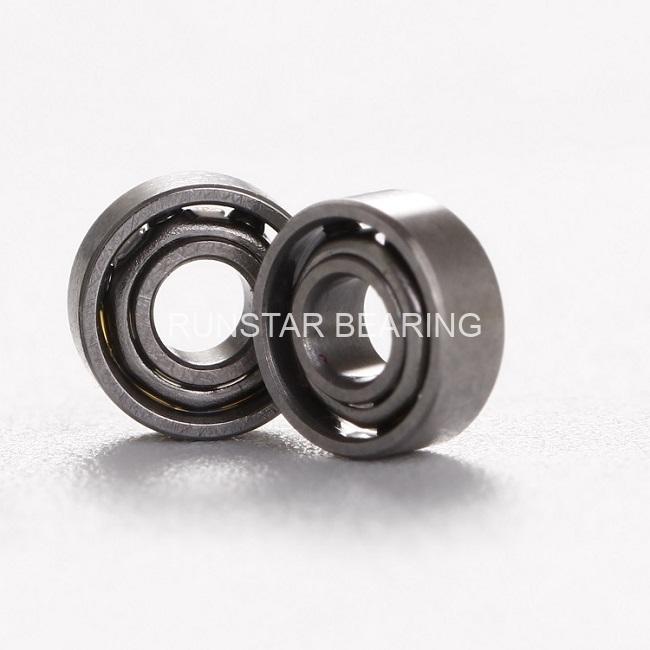

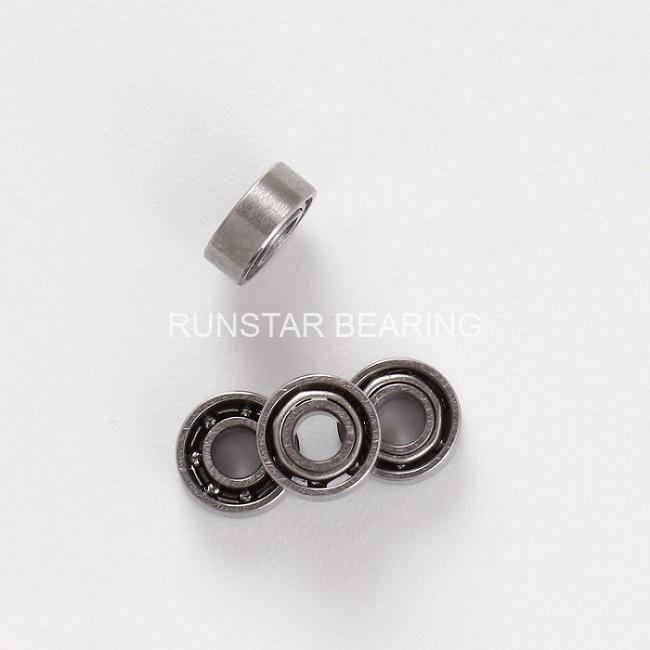

| Part Number | 602 |
| Bearing type | BALL |
| Structure | Single Row |
| Load Direction | Radial |
| Seal type | Open |
| Bore diameter(d) | 2mm |
| Outer diameter(D) | 7mm |
| Width(B) | 2.8 mm |
| material | Chrome steel 52100(Gcr15) |
| ring material | Chrome steel 52100(Gcr15) |
| cage material | 300 Series Stainless Steel |
| ball material | Chrome steel 52100(Gcr15) |
| shields material | 300 Series Stainless Steel |
| Grade | ABEC-1(higher grade available) |
| Clearance | C0(other clearance available) |
| BALL SIZE(mm) | 1.2 mm |
| BALL QTY | 7 |
| lubrication | grease(oil available) |
| Temperature Range | -30℃~130℃ |
| weight(g) | 0.50 |
| ISO9001:2015 | PASSED |
| REACH | PASSED |
| ROHS | PASSED |
| Dynamic Load Rating (Cr) | 328 N |
| Static Load Rating (Cor) | 103 N |
