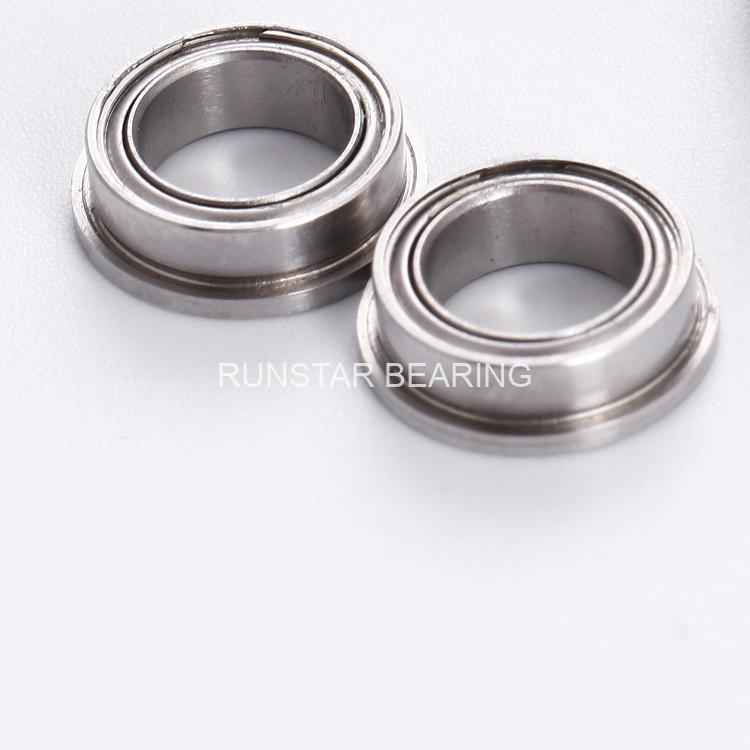

| Part Number |
FR168zz |
| Bearing type |
BALL |
| Structure |
Single Row |
| Load Direction |
Radial |
| Seal type |
Shields |
| Bore diameter(d) |
1/4″︱6.35mm |
| Outer diameter(D) |
3/8″︱9.525mm |
| Flange OD(Df) |
0.422″︱10.7188mm |
| Width(B) |
1/8″︱3.175mm |
| Flange thickness (Bf) |
0.036″︱0.9144mm |
| radius (rs) |
0.1mm |
| material |
Chrome steel 52100(Gcr15) |
| ring material |
Chrome steel 52100(Gcr15) |
| cage material |
300 Series Stainless Steel |
| ball material |
Chrome steel 52100(Gcr15) |
| shields material |
300 Series Stainless Steel |
| Grade |
ABEC-1(higher grade available) |
| Clearance |
C0(other clearance available) |
| BALL SIZE(mm) |
1mm |
| BALL QTY |
11 |
| lubrication |
grease(oil available) |
| Temperature Range |
-30℃~130℃ |
| weight(g) |
0.73 |
| ISO9001:2015 |
PASSED |
| REACH |
PASSED |
| ROHS |
PASSED |
| Dynamic Load Rating (Cr) |
315N |
| Static Load Rating (Cor) |
137N |
