1/4 inch ball bearing SR4A-2RS

Request A Quote Form
All information you fill will only be used to reply to your email and will be kept strictly confidential.
Part Number SR4A-2RS
Bearing type Ball
Structure Single Row
Load Direction Radial
Seal type Rubber seals
Bore diameter(d) 1/4″︱6.35mm
Outer diameter(D) 3/4″︱19.05mm
Width(B) 0.2188″︱5.558mm
material Stainless steel 440C(9Cr18)
ring material Stainless steel 440C(9Cr18)
cage material Stainless steel 304
ball material Stainless steel 440C(9Cr18)
Rubber material Stainless steel 304 with rubber
Grade ABEC-1
Clearance C0
BALL SIZE(mm) 3.5mm
BALL QTY 6
lubrication grease or oil
Temperature Range -30℃~130℃
weight(g) 10
ISO9001:2015 PASSED
REACH PASSED
ROHS PASSED
Dynamic Load Rating (Cr) 1984 N
Static Load Rating (Cor) 716 N

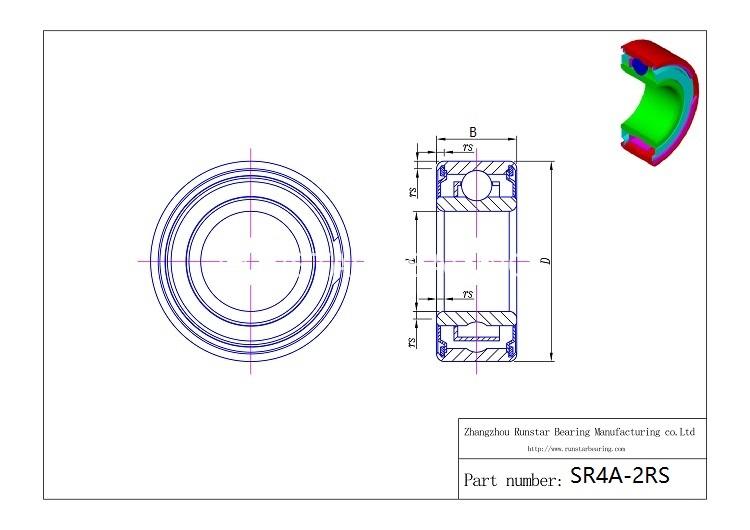

14 inch ball bearing sr4a 2rs d

BEARING INTERCHANGE



RUNSTAR NMB NTN ADR GRW EZO TIMKEN
SR4A-2RS SRI-1214-2RS SEE2-2RS SR4A-2RS SBR1/4-2RS SR4A-2RS
